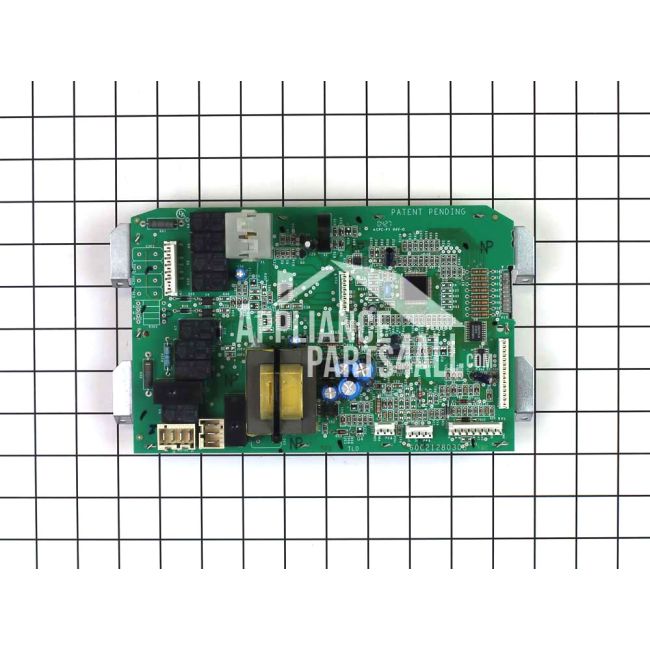

WP22004257 Whirlpool Control Board and Led Assembly

The control board and LED assembly are essential components for washing machines. Whirlpool manufactures these for various brands, including Whirlpool, Amana, KitchenAid, Maytag, Jenn-Air, Magic Chef, Roper, and Admiral. They also produce products for Sears-Kenmore and Ikea.

This control board is specifically designed to regulate the washer's spin speed during cycles. It manages crucial functions such as the drain pump, drive motor, and fill valves. When this part is faulty or damaged, the washing machine may face issues with draining, spinning, filling, or starting. Replacing the control board is necessary to restore the appliance's functionality.

To replace the control board, first, unplug the washer. Remove the control knob from the console panel and pull the washer forward. Unscrew the top of the back panel, disconnect the mounting clips, and remove the air hose. Take out the mounting screws and then the control board. Document the wire placements before disconnecting them. Reassemble the washer by reversing these steps and plug it back in.

This control board is compatible with Maytag washing machines. It is sold individually and sourced directly from the manufacturer as a genuine OEM replacement part.
