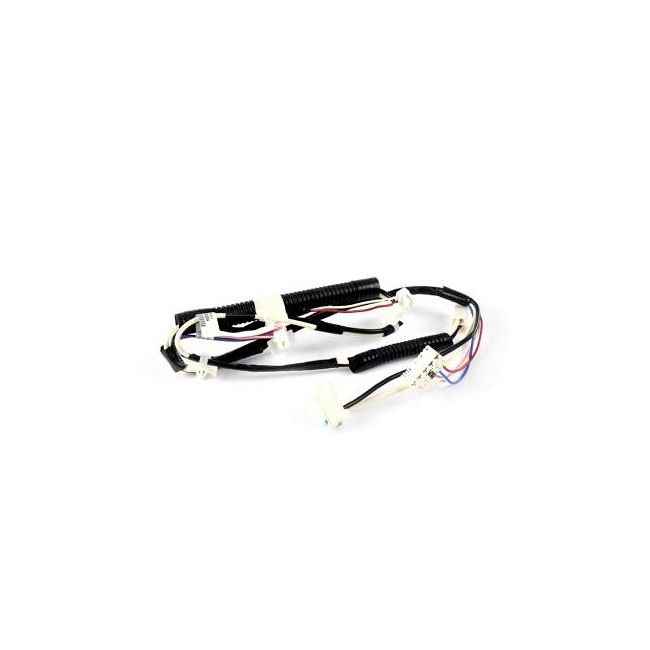

W11316252 Whirlpool Wire Harness for Washing Machines

The Wire Harness for Whirlpool Washing Machines is an original equipment manufacturer (OEM) part designed to connect all electronic control boards and components within the appliance. This harness ensures that all parts communicate effectively, enabling the washing machine to perform various functions such as regulating temperature, controlling water fill levels, and managing agitation.

Whirlpool produces this part and it is also compatible with several other brands under its umbrella, including Amana, KitchenAid, Maytag, Jenn-Air, Magic Chef, and Roper, as well as Admiral. Additionally, Whirlpool manufactures compatible products for Sears-Kenmore and Ikea.

A malfunctioning wire harness can lead to several issues. Common causes of damage include wires getting pinched, insulation cuts, bending at stress points, or connections loosening from regular machine movement.

When a harness is failing, some typical signs might include error messages on the display, halted cycles, motors that fail to receive signals, malfunctioning lights or displays, and overall inconsistent machine performance.

Understanding these potential problems and symptoms can help in diagnosing issues and ensuring timely maintenance or replacement of the wire harness to maintain the washing machine's efficiency and reliability.
