WP8203529 Whirlpool Surface Burner Control Switch Kit

This Surface Burner Control Switch Kit, part number WP8203529, is designed for dual-sized burners on ranges and cooktops. This kit is compatible with a variety of Whirlpool brands, including Amana, KitchenAid, Maytag, Jenn-Air, Magic Chef, Roper, and Admiral. Additionally, Whirlpool manufactures products for Sears-Kenmore and Ikea.

The terminal placements on this control switch may vary from the original. Therefore, before removing the existing switch, it's advisable to document the current setup by taking a digital photo or noting the wire colors and terminal numbers for an easier installation process.

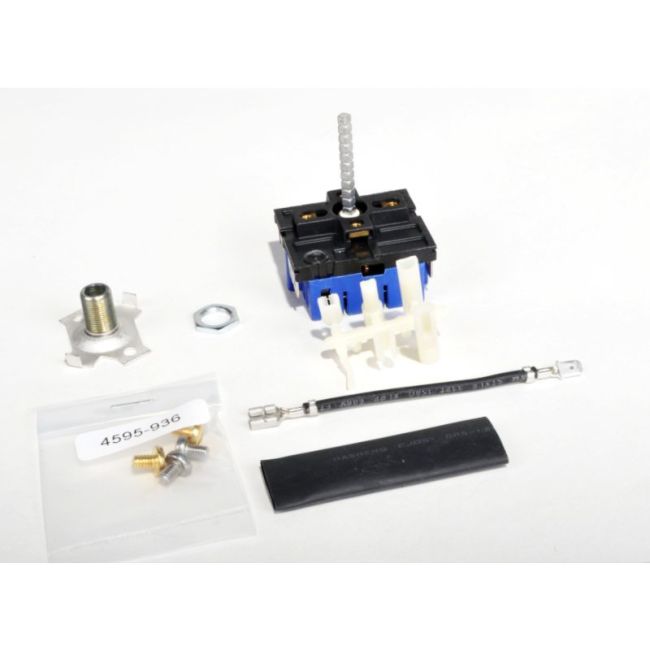

This kit is essential for operating your range’s surface element, allowing you to turn it on and off, as well as control the heat level. The kit includes all necessary components for installation: the switch itself, mounting nut, screws, shaft adapters, jumper wire, and a heat shrink tube.

Safety is important. Before installing, disconnect power from the range by either unplugging it or switching off the circuit breaker. Use work gloves to protect your hands during the installation.
