WP71003424 Whirlpool Electronic Clock Oven Control Board for Ranges and Stoves

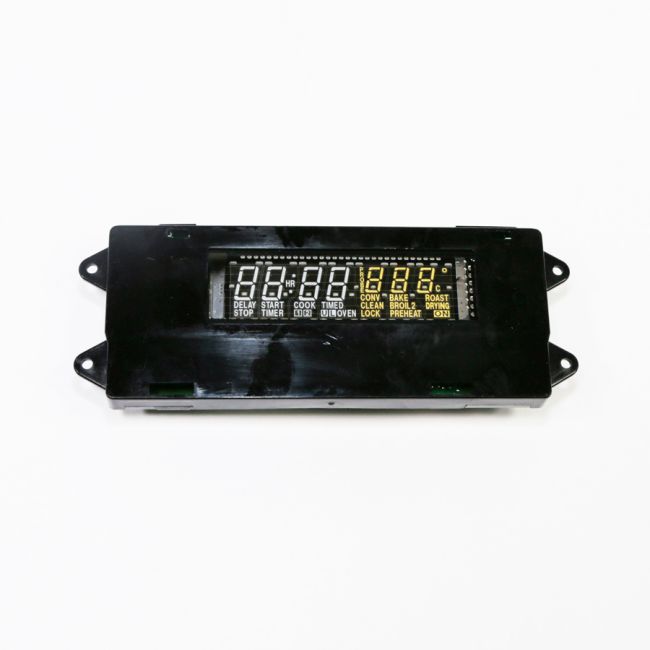

Electronic Clock Oven Control Board for Ranges and Stoves.

This control board is a genuine OEM replacement part compatible with several brands including Whirlpool, Amana, KitchenAid, Maytag, Jenn-Air, Magic Chef, Roper, and Admiral. Additionally, it fits appliances sold under the Sears-Kenmore and Ikea brands. Designed for use in ovens and microwave/oven combination units, this board is situated at the center back of the range and features a small display window.

The board facilitates the management of various oven operations such as baking and broiling, and it also displays the time. If switching functions between baking and broiling becomes impossible, this might suggest that the control board needs replacement. Conducting a test on the oven’s heating elements will help confirm if the control board is at fault.

To replace the board, ensure the appliance is disconnected from power and completely cool. Start by opening the oven door to reach the screws securing the control board. Disconnect the ribbon cable before removing the old board. Follow these steps in reverse to install the new board.

The electronic clock oven control board is available for purchase as an individual component. It ensures continued accuracy and functionality in managing your oven’s settings.
