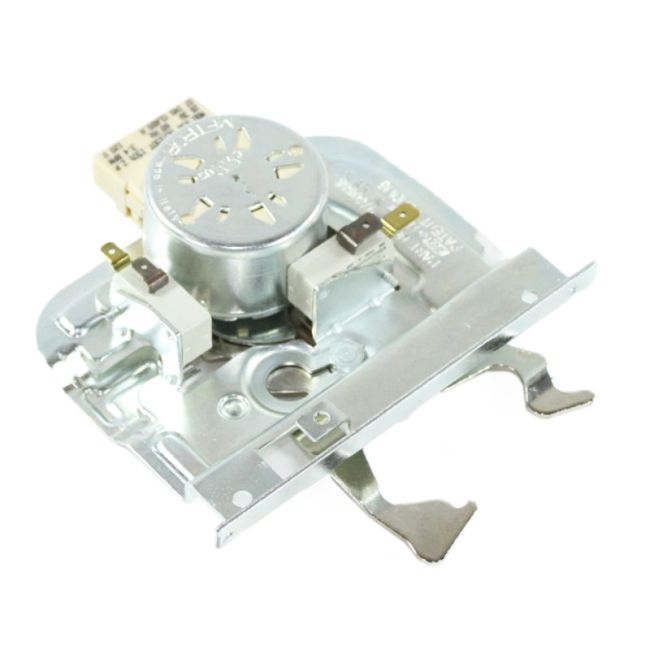

WP9760889 Whirlpool Range/Stove/Oven Door Lock Motor and Switch Assembly

Range/Stove/Oven Door Lock Motor and Switch Assembly

If your oven door doesn't open after a self-cleaning cycle, you might need this part. This genuine replacement is a door lock motor switch assembly, designed to keep the oven door locked. Over time, the motor or switch can fail due to wear and tear, necessitating a replacement.

Compatible with brands like Whirlpool, Amana, KitchenAid, Maytag, Jenn-Air, Magic Chef, Roper, Admiral, and also products made for Sears-Kenmore and Ikea, this part ensures your oven door remains securely closed.

To replace it, follow these steps:
1. Unplug the oven.
2. Pull the oven away from the wall.
3. Remove the upper back access panel.
4. Locate the lock motor and switch assembly.
5. Disconnect the wires from the motor and switch.
6. Unthread the two mounting screws holding the assembly.
7. Remove the connection rod.

To install the new assembly:
1. Reattach the connection rod.
2. Refasten the mounting screws.
3. Reconnect the wires to the motor and switch.
4. Reinstall the back panel.

This genuine OEM part is sold individually and fits various compatible brands.
