W11517113 Whirlpool Refrigerator Ice Maker Kit

Refrigerator Ice Maker Kit Overview:

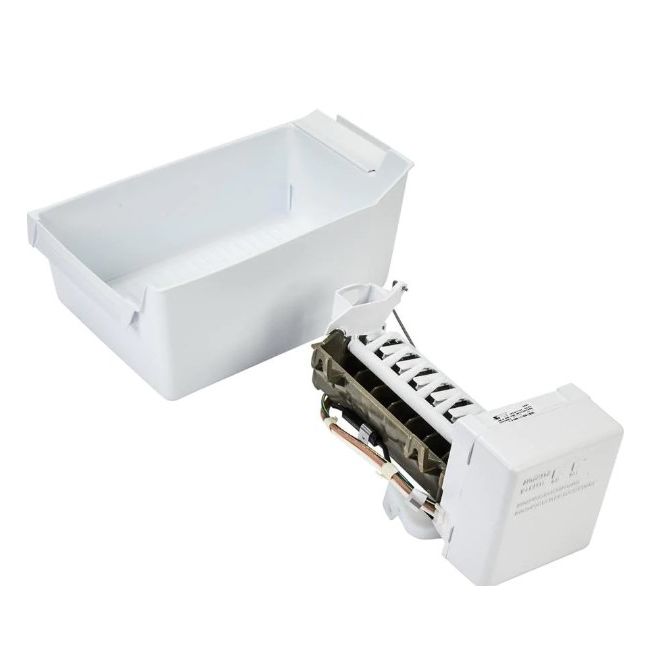

This ice maker kit is an original equipment manufacturer (OEM) replacement specifically designed for Whirlpool freezers. The Whirlpool corporation encompasses several brands such as Amana, KitchenAid, Maytag, Jenn-Air, Magic Chef, Roper, and Admiral, and also manufactures products for Sears-Kenmore and Ikea. The kit includes an ice maker assembly and a storage bin, featuring a 4-wire 5-terminal straight plug for easy connection. The dimensions of the kit are 5.25 inches in height, 6.16 inches in width, and 11.25 inches in depth. Installation requires basic tools such as a multi-screwdriver, adjustable wrench, pliers, a 1/4 inch nut driver, and a ruler. It is important to note that the water valve is not part of this kit.

Installation Instructions:
Begin by turning off the power and water supply to ensure safety. Remove any existing ice maker components. Install the new ice maker by mounting it in place, connecting the EZ plug, and reattaching the water line. Make sure everything is aligned correctly before putting the ice bin back in place. This kit is designed to be a straightforward solution for replacing an ice maker and its plug, particularly if the original part was defective or the connection had worn out. This replacement part is suitable for various models across the Whirlpool brand family, including Maytag and Kitchen Aid.
