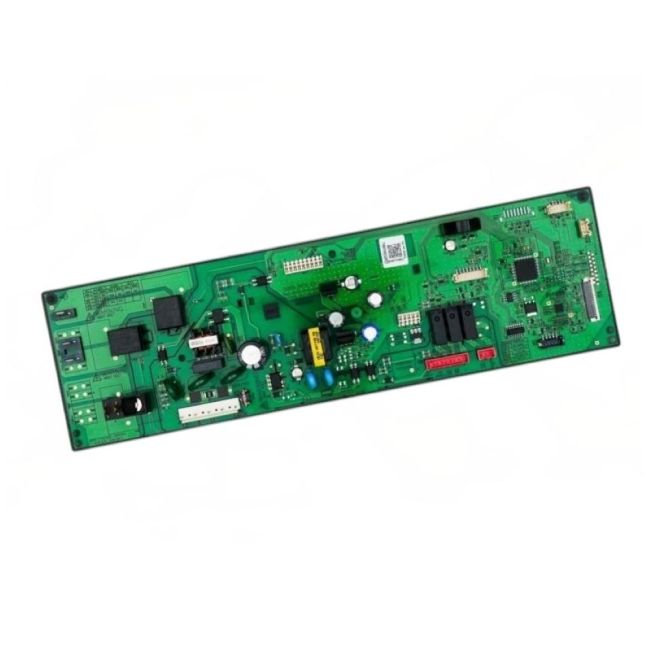

DG94-05220C Samsung Control Board

<!-- ===== Samsung DG94-05220C (DG94-04041C) Product Description ===== --> <!-- Paste everything below into your product description's HTML / Source / Code view --> <div class="product-description"> <p><strong>Genuine Samsung replacement control board for gas ranges.</strong> The DG94-05220C runs your oven's temperature, bake and broil burners, touchpad, and timer. Also fits select Kenmore ranges.</p> <h2>What the DG94-05220C Does</h2> <p>Think of the control board as the oven's brain. Every time you press Bake, set a temperature, or start a timer, this board takes that input and tells the rest of the range what to do. It monitors the oven temperature, cycles the bake and broil burners on and off, and keeps the display and clock running.</p> <p>When it goes bad, the whole range can act up, even if every other part is fine.</p> <h2>Common Signs of a Failing Control Board</h2> <ul> <li>Oven heats too high, too low, or not at all</li> <li>Touchpad buttons are unresponsive or only work sometimes</li> <li>Range won't turn on, or shuts off mid-cook</li> <li>Error codes keep appearing on the display</li> <li>Clock or timer resets or behaves erratically</li> </ul> <p>Most board failures come from power surges, heat exposure over years of cooking, or aging components on the circuit board. If you've already ruled out the igniter and temperature sensor, the control board is the next likely culprit.</p> <h2>Part Specifications</h2> <ul> <li><strong>Brand:</strong> Samsung (genuine OEM)</li> <li><strong>Part Number:</strong> DG94-05220C</li> <li><strong>Part Type:</strong> Main control board / PCB EEPROM assembly</li> <li><strong>Also Called:</strong> Electronic control board (ECB), main control board (MCB), oven control board</li> <li><strong>Reference Specs:</strong> EEP_03, NX500</li> <li><strong>Appliance:</strong> Gas range / oven</li> <li><strong>Compatible Brands:</strong> Samsung, select Kenmore models</li> </ul> <h2>Replaces These Part Numbers</h2> <p>AP8071926, DG94-04041C, AP7032727, PS16634135, PS18095705, EAP16634135, EAP18095705, 4999715.</p> <h2>Installation Tips</h2> <p>This is a moderate DIY job for most homeowners. Before you start, unplug the range and turn off the gas supply. A Phillips screwdriver is usually all you need.</p> <p>Snap a photo of the wiring on the old board before unplugging anything, so every connector goes back in the same spot. Handle the new board by its edges to avoid static damage.</p> <h2>Frequently Asked Questions</h2> <h3>Is the DG94-05220C a genuine Samsung part?</h3> <p>Yes. This is an original equipment manufacturer (OEM) part made by Samsung, the same board installed in your range at the factory.</p> <h3>Will this board fit my range?</h3> <p>It's designed for Samsung gas ranges and some Kenmore models. Check your full model number, found on the label inside the oven door frame or storage drawer, to confirm the match before ordering.</p> <h3>Does this part fit LG ranges?</h3> <p>No. The DG94-05220C is a Samsung part and is not compatible with LG appliances.</p> <h3>How do I know the control board is the problem?</h3> <p>If your oven has wrong temperatures, dead buttons, or recurring error codes, and the igniter and temperature sensor test fine, the control board is a likely cause.</p> <h3>Can I install it myself?</h3> <p>Most people with basic tools can. Always disconnect power and gas first, and label or photograph the wire connections before removing the old board.</p> </div> <!-- ===== Schema Markup: replace [PRICE] and [PRODUCT_URL] before publishing ===== --> <script type="application/ld+json"> { "@context": "https://schema.org", "@graph": [ { "@type": "Product", "name": "Samsung DG94-05220C Gas Range Oven Control Board", "sku": "DG94-05220C", "mpn": "DG94-05220C", "brand": { "@type": "Brand", "name": "Samsung" }, "description": "Genuine Samsung OEM gas range oven control board (PCB EEPROM assembly). Controls oven temperature, bake and broil burners, touchpad, and timer.", "category": "Range & Oven Parts > Control Boards", "itemCondition": "https://schema.org/NewCondition", "offers": { "@type": "Offer", "price": "[PRICE]", "priceCurrency": "USD", "availability": "https://schema.org/InStock", "url": "[PRODUCT_URL]" } }, { "@type": "FAQPage", "mainEntity": [ { "@type": "Question", "name": "Is the DG94-05220C a genuine Samsung part?", "acceptedAnswer": { "@type": "Answer", "text": "Yes. This is an original equipment manufacturer (OEM) part made by Samsung." } }, { "@type": "Question", "name": "Will this board fit my range?", "acceptedAnswer": { "@type": "Answer", "text": "It's designed for Samsung gas ranges and some Kenmore models. Confirm your full model number before ordering." } }, { "@type": "Question", "name": "Does this part fit LG ranges?", "acceptedAnswer": { "@type": "Answer", "text": "No. The DG94-05220C is a Samsung part and is not compatible with LG appliances." } }, { "@type": "Question", "name": "How do I know the control board is the problem?", "acceptedAnswer": { "@type": "Answer", "text": "If your oven has wrong temperatures, dead buttons, or recurring error codes, and the igniter and temperature sensor test fine, the control board is a likely cause." } }, { "@type": "Question", "name": "Can I install it myself?", "acceptedAnswer": { "@type": "Answer", "text": "Most people with basic tools can. Disconnect power and gas first, and photograph the wiring before removing the old board." } } ] } ] } </script>
